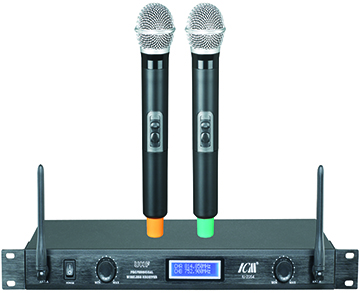

IU-2054

Carrier Wave Frequency Range：UHF 600-870MHz, Oscillation Mode：Quartz Controlled Fixed Frequency, Carrier Wave Stability:10PPM, Sensitivity:-105dBb @ sinad=12dB, S/N Ratio：>105dB, T.H.D. ：<0.5%@1KHz1, Image rejection:85dB typical, Spurious rejection:75dB typical, Frequency Responses：40Hz~18KHz

Parameter

IU-2054 RECEIVER

◆ Carrier Wave Frequency Range：UHF 600-870MHz

◆ Oscillation Mode：Quartz Controlled Fixed Frequency

◆ Carrier Wave Stability:10PPM

◆ Sensitivity:-105dBb @ sinad=12dB

◆ S/N Ratio：>105dB

◆ T.H.D. ：<0.5%@1KHz1

◆ Image rejection:85dB typical

◆ Spurious rejection:75dB typical

◆ Frequency Responses：40Hz~18KHz

◆ Working distance:200 feet

◆ Squelch Control:dual-squelch circuit

◆ AF Output Impedance:2.2KΩ

◆ Max.Output Level:Balance:0-400mv,Unbalance:0-200mv

◆ Display:LCD

◆ Power Supply:External DC Power Supply,0.35A,12~18VDC

◆ Output Connector:2XLR Balanced Socket Unbalance TRs⊙6.35mm Socket

◆ Dimensions (mm) ：420(L) x 45(H) x 195(D)

IA-06 TRANSMITTER(HANDHELD)

◆ Transmitter power：30 mW

◆ Spurious emission：<40dB

◆ Battery：1.5v x 2

◆ Battery life：8 hours
