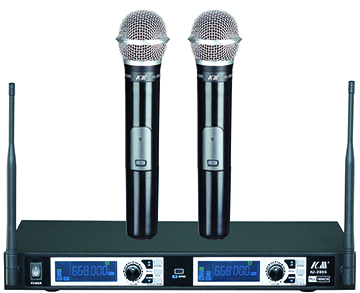

IU-2055

PLL&UHF Wireless Microphones

Professional UHF Diversity Wireless Microphone System.1000 Switchable Channels with Auto Channel Selection Function.Two High Sensitive Microphone with Noise Reduction Technology.Individual Volume Control.Dual Channel Information LCD Display.Front Antenna Provides Clear RF Reception.Easy IR Syncing for Quick Channel Matching.Rack Mountable(Kit Included).

Characteristic

◆Professional UHF Diversity Wireless Microphone System.

◆1000 Switchable Channels with Auto Channel Selection Function.

◆Two High Sensitive Microphone with Noise Reduction Technology.

◆Individual Volume Control.

◆Dual Channel Information LCD Display.

◆Front Antenna Provides Clear RF Reception.

◆Easy IR Syncing for Quick Channel Matching.

◆Rack Mountable(Kit Included).

Parameter

IU-2055 RECEIVER

◆ Carrier Wave Frequency Range：UHF 600-870MHz

◆ Oscillation Mode：Quartz Controlled Fixed Frequency

◆ Carrier Wave Stability:10PPM

◆ Switching bandwidth:24MHz

◆ Frequency Space:25KMz

◆ Sensitivity:-105dBb @ sinad=12dB

◆ S/N Ratio：>105dB

◆ T.H.D. ：<0.5%@1KHz1

◆ Image rejection:85dB typical

◆ Spurious rejection:75dB typical

◆ Frequency Responses：40Hz~18KHz

◆ Working distance:200 feet

◆ Squelch Control:dual-squelch circuit

◆ AF Output Impedance:2.2KΩ

◆ Max.Output Level:Balance:0-400mv,Unbalance:0-200mv

◆ Display:LCD

◆ Power Supply:External DC Power Supply,0.5A,12~18VDC

◆ Output Connector:2XLR Balanced Socket Unbalance TRs⊙6.35mm Socket

◆ Dimensions (mm) ：420(L) x 45(H) x 200(D)

IA-04 TRANSMITTER(HANDHELD)

◆ Transmitter power：30 mW

◆ Spurious emission：<40dB

◆ Battery：AA x 2

◆ Current drain：<120mA
